OE2022 Lock-in Amplifier
DC-1.5MHz Dual-channel Lock-in Amplifier
DC to 1.5MHz Frequency
Input noise as low as 2.5nV/√Hz
Input range 1nV to 5Vrms
>130 dB dynamic reserve
2 independent synchronized input channels
8-channel synchronous demodulators
2-channel oscilloscope with FFT analysis
2-channel PID controllers
Introduction
Performance
Application Area
Software Interface

Overview

The OE2022 dual-channel lock-in amplifier is the latest core technology product, featuring exceptional high performance and wide bandwidth measurement capabilities. This instrument is based on digital modulation technology and is equipped with a 24-bit high-precision analog-to-digital converter (ADC) and 16-bit high-speed digital-to-analog converter (DAC). With the newly launched LIUXI-architecture, it can accurately, quickly, and flexibly detect effective signal components hidden in strong noise.

The OE2022 has 2 independent and synchronized input channels, capable of simultaneously measuring the amplitude and phase information of two input signals. It achieves international leading levels in key performance indicators such as measurement accuracy, operating frequency range, signal-to-noise ratio, and dynamic reserve. Additionally, the newly added multi-harmonic measurement, oscilloscope, spectrum analyzer functions, and PID control capabilities make the OE2022 widely applicable to various needs in scientific research and industrial fields.

OE2022

Block Diagram of OE2022


Input Signal Channel

The OE2022 is equipped with a low-noise analog amplifier that efficiently processes single-ended or differential signals, with an equivalent input noise as low as 2.5 nV/√Hz. The input impedance of this channel is 10 MΩ, and the full-scale range is from 1 nVrms to 5 Vrms. Furthermore, the signal input channel uses a high-precision 24-bit ADC, achieving a dynamic range over 130 dB.


Output Signal Channel

The signal output ports of OE2022 is based on a 32 MSPS 16-bit DAC, capable of generating high-precision sine wave signals in the frequency range of 1 Hz to 1.5 MHz, with adjustable DC offset. The signal amplitude range is from 0.1 Vrms to 5 Vrms, and the DC offset range is ±5 Vdc. For external devices requiring bias voltage, such as electro-optic modulators, the OE2022 can drive devices directly without the need for additional level conversion amplifiers. The output signal phase is synchronized with the instrument's internal oscillator. It can be independently set for phase offset.

Additionally, the OE2022 supports AM/FM/PM modulation functions, allowing users to perform modulation control of the system.


Reference Signal Channel

The reference signal of the OE2022 can be selected as either a sine wave or square wave signal based on user requirements, or it can use an internally digitally synthesized reference signal. When the OE2022 is set to internal reference signal mode, the instrument's internal high-precision oscillator and digital synthesis algorithm generate a sine wave signal for multiplication with the input signal, with the internal reference signal being nearly unaffected by phase noise. Through digital phase shifting technology, the phase resolution of the internal reference signal can reach 1 μdeg.

When the OE2022 operates in external reference signal mode, it accepts sine wave signals or TTL logic levels as external reference signals, which are locked by the internal digital phase-locked loop. Based on the frequency of the reference signal, the OE2022 can detect signals at the fundamental frequency and its harmonics, detecting up to 10,000 times the fundamental frequency. But it provided that the maximum harmonic frequency does not exceed the upper limit of the instrument's measurement bandwidth.


Digital Demodulator

The OE2022 has 8 synchronized demodulators, which can be independently controlled. The time constant of the OE2022 can be flexibly set within the range of 100 ns to 3 ks, allowing users to customize the time constant according to their needs. The filter's roll-off rate can be selected from 6 to 48 dB/oct in 8 steps. Using digital modulation technology and advanced filter structures. The OE2022 offers higher dynamic reserve (>130 dB), more precise phase (absolute phase error < 1°), zero DC drift, and excellent orthogonal performance compared to traditional analog lock-in amplifiers. Additionally, the OE2022 provides an optional synchronous filter that can quickly eliminate the effects of signal harmonics, ensuring that the instrument accurately detects low-frequency signals while responding rapidly.



Communication Interface

The OE2022 includes USB 2.0, 1000 Mbps RJ45 Ethernet port, WIFI network interface, RS232 serial port, and GPIB interface. Through these interfaces, users can effectively utilize all testing functions of the OE2022 on a controlling computer, setting reasonable control parameters and reading the data measured by the instrument.

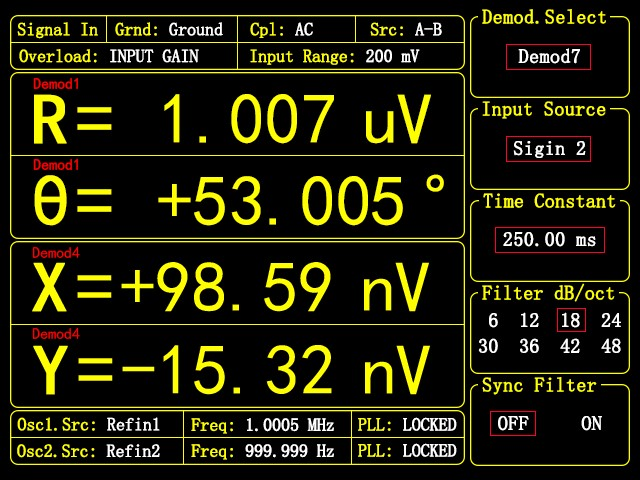

Color Display Screen

The OE2022 features a 5.6-inch TFT color display with a resolution of 640×480, serving as the main user interface, allowing full independent control of the instrument via  keyboard. On the display, users can easily heed parameters such as demodulator X, Y, R, θ, and configure various basic settings like filter constants, making the operation intuitive and convenient.

彩色显示屏

Input Signal Channel

Input Channel Number                                           2

Input Mode

       Voltage                                                            Single-ended or Differential

       Current                                                            Single-ended

Full-Scale Sensitivity                                              1 nV to 5 Vrms

Range Levels                                                         2mV to 5V, total 7 levels

Input Coupling Mode                                              DC or AC coupling

Input Impedance                                                    10 MΩ || 25 pF (Voltage)

                                                                               100Ω or1 kΩ (Current)

Input Shield Grounding                                          Grounding or 10 kΩ floating

Dynamic Reserve                                                   >130 dB

Gain Accuracy                                                        0.5% typical, 1% max

Input Voltage Noise                                                3.5nV/√Hz(f ≥ 1 kHz)

                                                                               2.5 nV/√Hz(f ≥ 10 kHz)

Input Current Noise                                                20 fA/√Hz(f = 97Hz)

ADC Bit                                                                  24 bit



Reference Signal Channel

Reference Channel Number                                  2

Reference Signal

       Frequency Range                                           10 μHz – 1.5 MHz

       Supported Waveform                                      Square or sine wave

       Input Impedance                                             1 MΩ

       Reference Levels

              Square                                                     3V<VIH<5V, -0.1V<VIL<0.5V

              Sine                                                         300 mV < Vpp < 10 V

Phase

       Resolution                                                      1.0 μdeg

       Phase Error                                                    ±0.5 deg typical, ±1 deg max

       Temperature Drift                                           < 200 ppm/℃

Harmonic Detection                                              1-10000F (nF < 1.5 MHz)

Acquisition Time

       Internal Reference                                         Instantaneous acquisition

       External Reference                                        10 or 100 signal cycles



Oscillator

Oscillator Number                                                  2

Oscillator Parameters

       Accuracy                                                         0.3 ppm

       Temperature Stability                                      0.5 ppm/℃

       Aging Rate                                                      <1 ppm/year

       Phase Noise                                                   -145 dBc/Hz (@1kHz)



Output Signal Channel

Output Channel Number                                        2

Frequency Range                                                  DC – 1.5MHz

Frequency Accuracy                                              2 ppm + 1 μHz

Frequency Resolution                                           1 nHz

Sine Amplitude                                                      0.1 μVrms to 5 Vrms

       Accuracy                                                        0.5% typical, 2% max

       Resolution                                                      0.1 μVrms

       Driving Current                                               ± 80 mA max

       Temperature Stability                                     <200 ppm/℃

       Output Impedance                                          50 Ω

Adjustable DC Offset                                             -5 VDC to 5 VDC

Synchronous Output                                              3.3V TTL/CMOS level

                                                                               output impedance 50 Ω

Additional Features                                                AM/FM/PM modulation output

DAC Parameter                                                     16 bit, 32 MSPS



Demodulator

Demodulator Number                                            8

Demodulator Bit                                                    64 bit

Input Source Select                                               2 input channels selectable

Time Constant                                                       100ns - 3ks

Measurement Bandwidth                                       50 μHz – 1.6 MHz

Filter Slope (dB/oct)                                               6, 12, 18, 24, 30, 36, 42, 48

Synchronous Filter                                                 <1000 Hz effective



Auxiliary Inputs/Outputs

AUX Input

       Function                                                          4-channel input

       Amplitude                                                        ±10V, 0.1 mV resolution

       Input Impedance                                             1MΩ

       ADC                                                                16 bit, 150 kSPS

AUX Output

       Function                                                          4-channel output

       Amplitude                                                        ±10V, 0.1 mV resolution

       Driving Current                                                ±30 mA max

       DAC                                                                16 bit, 500 kSPS


Communication Interfaces

RS-232                                                                   DB-9 female interface

USB2.0                                                                   480 Mbpshigh-speed interface

Ethernet                                                                  RJ45-1000Mbps

                                                                                     WIFI wireless network interface

GPIB                                                                      IEEE-488.2interface



Others

Power Supply

       Voltage                                                             220-240 V AC

                                                                                100-120 V AC(optional)

       Power                                                               50 W typical, 70 W max

Power Noise Suppression                                       70dB@1MHz

Dimensions                                                              448mm×532mm×148mm

Weight                                                                      12 kg

Scanning Microscope                                                AFM, STM, SPM

Materials Science                                                       Carrier mobility, Carrier density, Hall effect, Ultrasonic materials

Transport Measurement                                            Conductivity measurement, Impedance measurement

Noise Represents                                                       Noise density, Cross-correlation measurement

Optical Experiment                                                    Spectral analysis, Spectral measurement, THz measurement, TDLAS

Sensor Measuring                                                      Gyroscope, Photoelectric sensor, Resonator, Accelerometer

Magnetic Sensor                                                        SQUIDs, NV color center, Atomic Magnetometer, VSM

Biomedical                                                                  Microfluidic

PC Software

The OE2022 provides professional PC software that allows configuration of each demodulator, input channel, and output channel through schematic diagrams or control panels, combining professionalism and practicality with simplicity and intuitiveness. The software features clear numerical display and real-time waveform display functions. Users can save the measurement results exportable as CSV files for subsequent analysis using professional software, enhancing the ease of testing. Furthermore, we fully support application programming interfaces (API) in Python, MATLAB, and LabVIEW.

上位机软件


Oscilloscope

The oscilloscope function features 2 signal channels, selectable for signal input, reference input, signal output, and auxiliary input/output, providing various triggering methods for real-time display of time-domain signals. Each channel has a maximum sampling depth of 65,536 and adjustable sampling durations from 65 µs to 1 s.

示波器


PID Controllers

The OE2022 has an internal independent 2-channel digital PID controller with a maximum sampling rate of 4 MSPS. The PID controller is closely linked with the lock-in amplifier, controlling the output signal's amplitude, phase, frequency, and other signals based on the measurements from the demodulator, achieving precise control of multiple parameters.

PID



Parametric Scanner

The parameter scanner provides users with convenient quick scanning capabilities, allowing for the instant plotting of frequency response, amplitude response curves, and offering single or loop scanning modes.

参数扫描仪


FFT Spectrum Analyzer

The FFT spectrum analyzer analyzes the frequency domain information of signals based on waveforms captured by the oscilloscope. Depending on the sampling rate and sampling depth, the frequency resolution range of the spectrum analyzer is approximately 1 Hz to 31 kHz.

FFT
