OE4101 Current Amplifier
70MHz Transimpedance Low Noise Current Preamplifier
Low current noise down to 60fA/√Hz
Ultra-low noise from input stage JFETs
Flexible transimpedance gain settings
DC-70MHz bandwidth range
Wide range of high-precision bias adjustment
Simple and convenient switching control
Introduction
Characteristic Curve
Data download

Product description

         The OE4101 is a transimpedance current amplifier that utilizes a negative feedback structure to convert input current to voltage using a feedback resistor and to control amplification.

         The OE4102 detects current by measuring the voltage drop across a resistor on the input current channel, amplifies and outputs a voltage signal proportional to the measured current.


OE4101 transimpedance low noise current preamplifier

         60fA/√Hz input current noise

         100V/A,10kV/A,1MV/A,100MV/A current transimpedance gain

         Wide range, high resolution bias adjustment

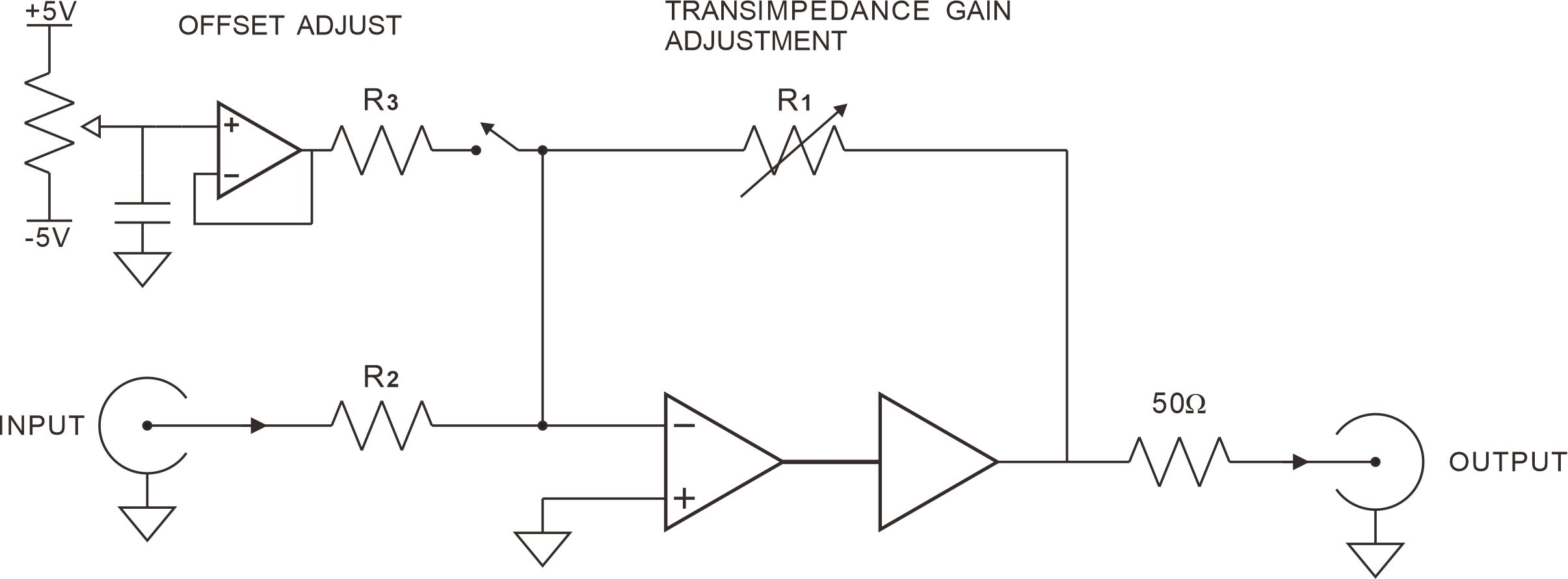

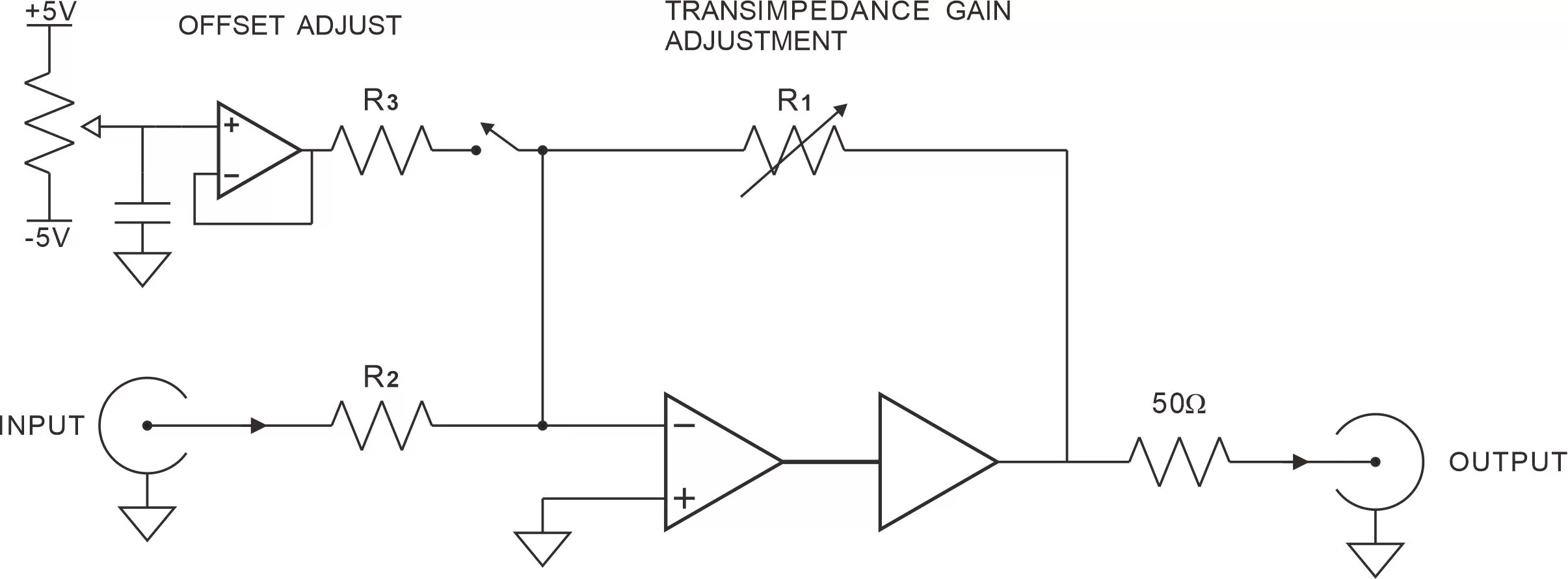

Principle block diagram

原理框图


Product specification

         Dimension                                                                       102*176*49(mm)

         Weight                                                                              0.3kg

         Storage temperature                                                  -20 ℃ to 65 ℃

         Operating temperature                                              5 ℃ to 40 ℃

         Power supply                                                                 12V/1A

         Maximum power consumption Approx               4.3W


Test conditions: supply voltage = 12V, ambient temperature = 25°C, input current 10mA-10nA, gain steps 100V/A-100MV/A, 0.5m BNC coaxial cable connection.

Note: [1]. Refer to Table 3 for the maximum input current range of the input signal of each gain stage; among them, use BNC converter to connect to the measuring instrument to reduce the load capacitance for the 100V/A stage, and use 0.5m BNC cable for the other stages.

          [2].The OE4101 is used as a negative feedback amplifier, the output signal is in opposite phase to the input signal.

特性曲线1

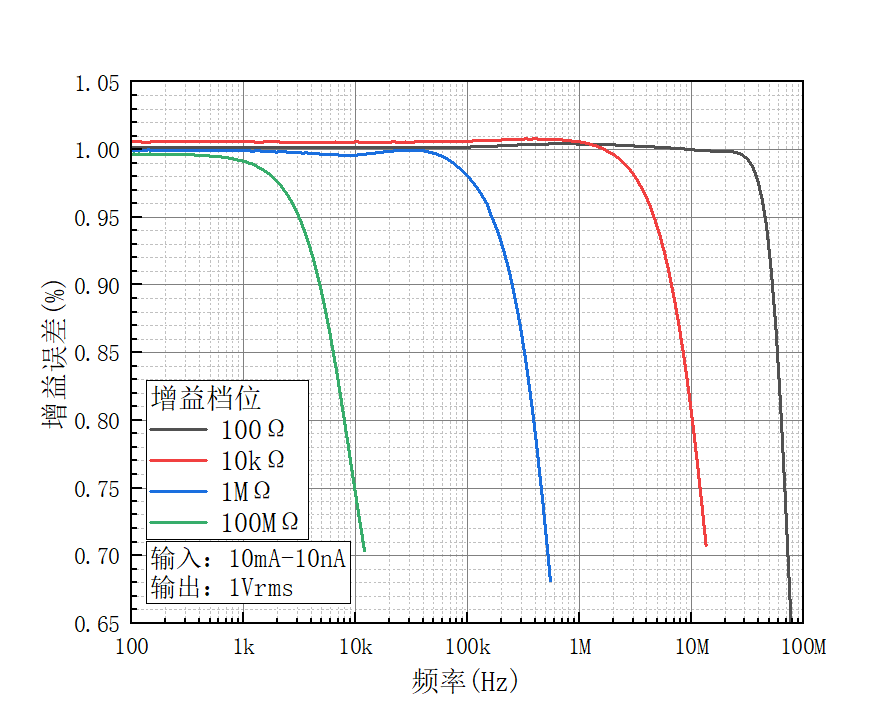

                         Figure I. Gain error-frequency curve



特性曲线2

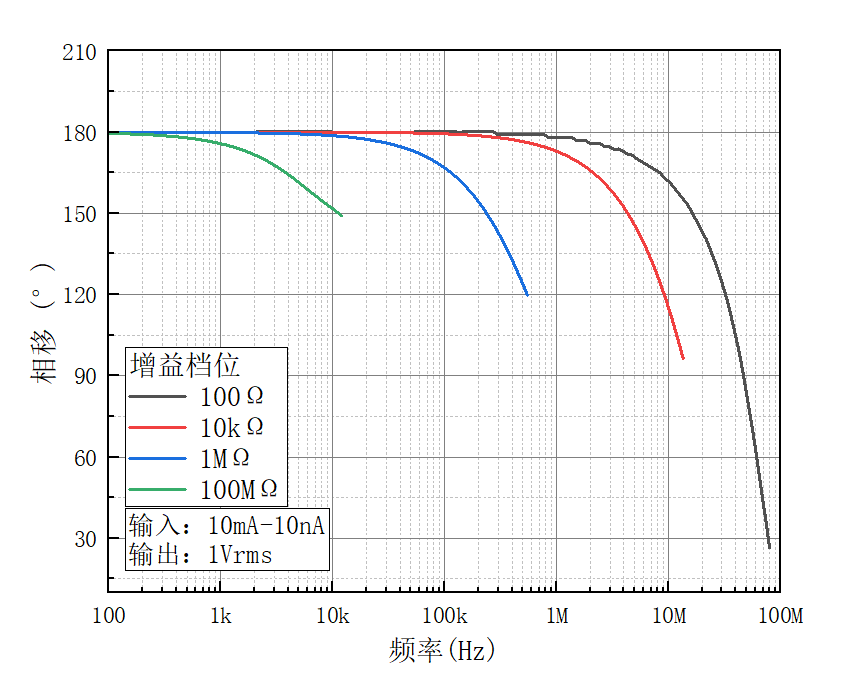

                         Figure II. Phase shift-frequency curve
