Overview
The OE4201 is a floating ground-isolated voltage-controlled current source device, which can provide a current source for other instrumentation.The OE4201 outputs AC current with a gain of 2mA/V and 200mA/V in two steps, and a frequency of 1Hz-100kHz. As a current source instrument, the OE4201 has high accuracy, good stability, the output is basically independent of the load and external voltage changes, strong anti-interference ability, and fast response time. It is suitable for use with sensitive AC instruments such as lock-in amplifiers, providing a simple method of generating precision current from AC voltage. Moreover, the OE4201 adopts a standard chassis with a compact, beautiful and reliable internal structure and flexible switching action, which makes the instrument easy to use, adjust and maintain.

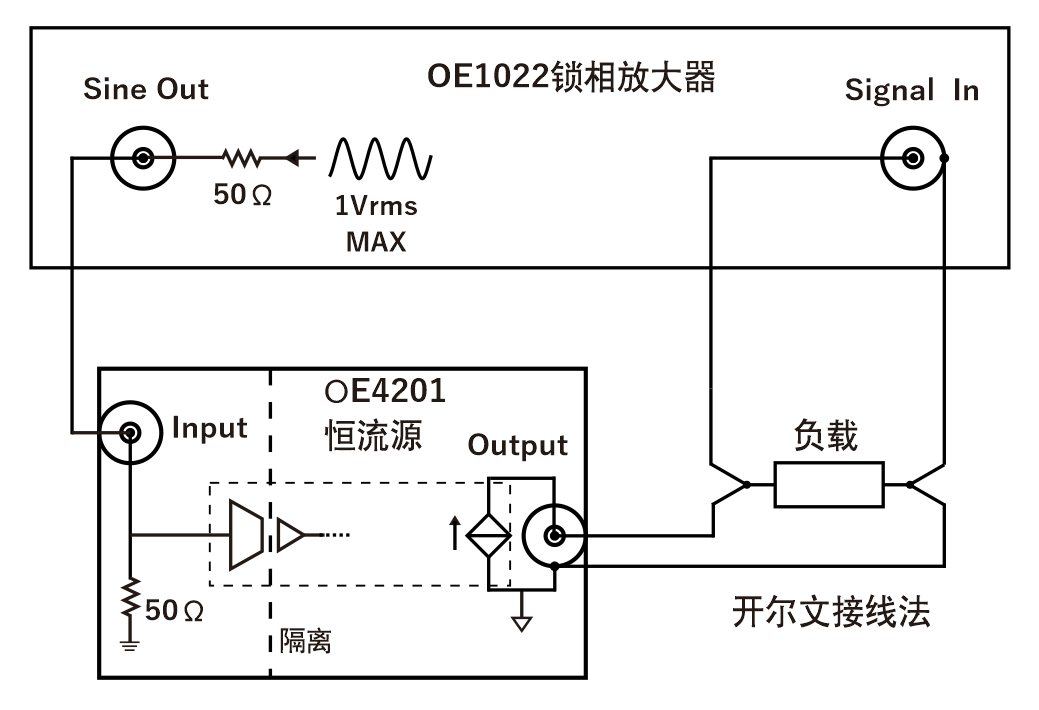

Block Diagram
Input
Input voltage range 0.005Vrms-0.5Vrms
Input Frequency Range 1Hz-100kHz
Input Impedance 50Ω
Input Peak Voltage ±0.707V max
Output
Output Mode Single-ended
Output Current RMS 0.01mA-100mA
Output Load 0.1Ω-100Ω
Rated Output Voltage ≤1Vrms
Maximum Output Voltage ±9V (open circuit)
Input-Output Gain 2mA/V or 200mA/V
Accuracy
Accuracy 2% (typical)
5% (maximum value)
Amplitude-Frequency and Phase-Frequency Characteristic Curves:

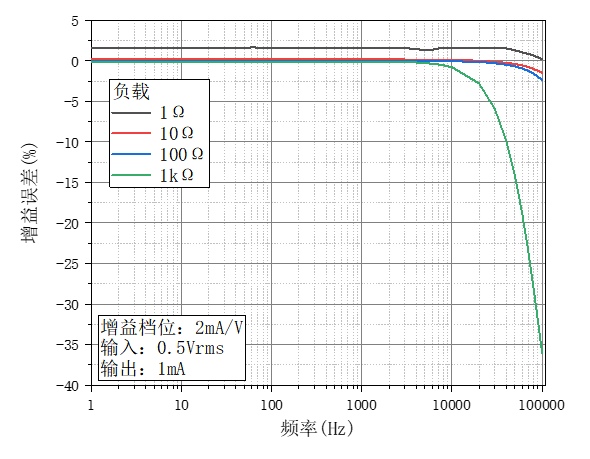

Fig.1 Gain Error-Frequency Curve (2mA/V gear level)

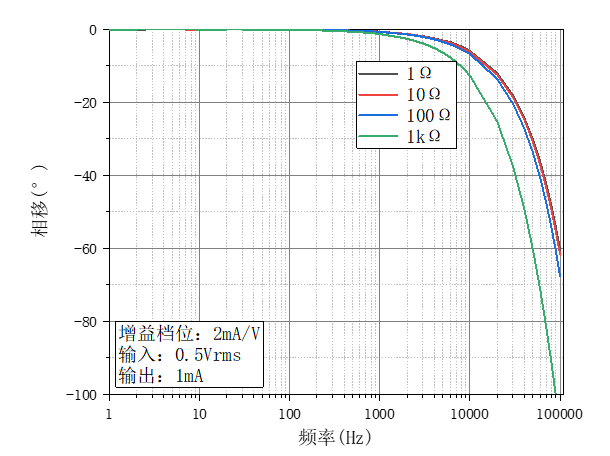

Fig.2 Phase Shift-Frequency Curve (2mA/V gear level)

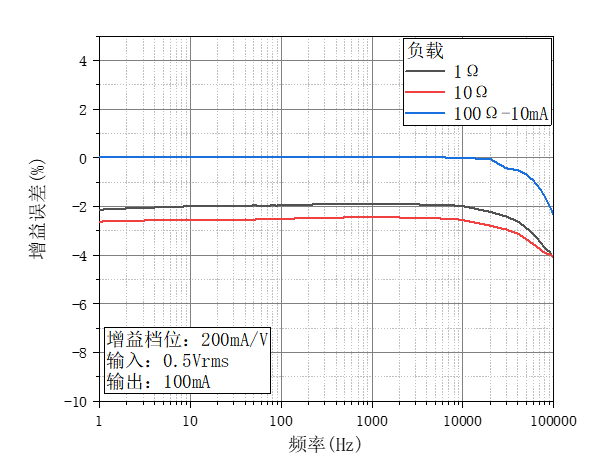

Fig.3 Gain Error-Frequency Curve (200mA/V gear level)

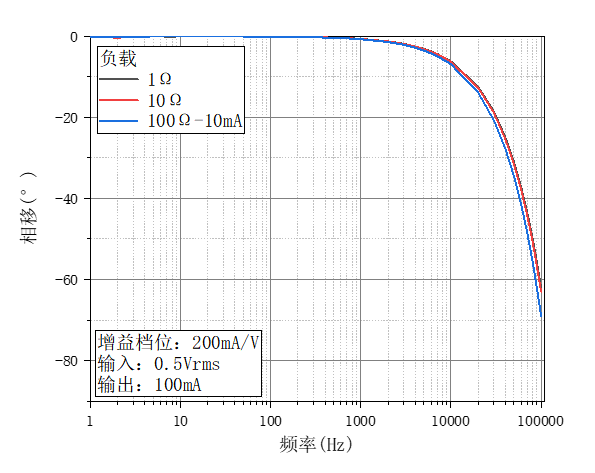

Fig.4 Phase Shift-Frequency Curve (200mA/V gear level)

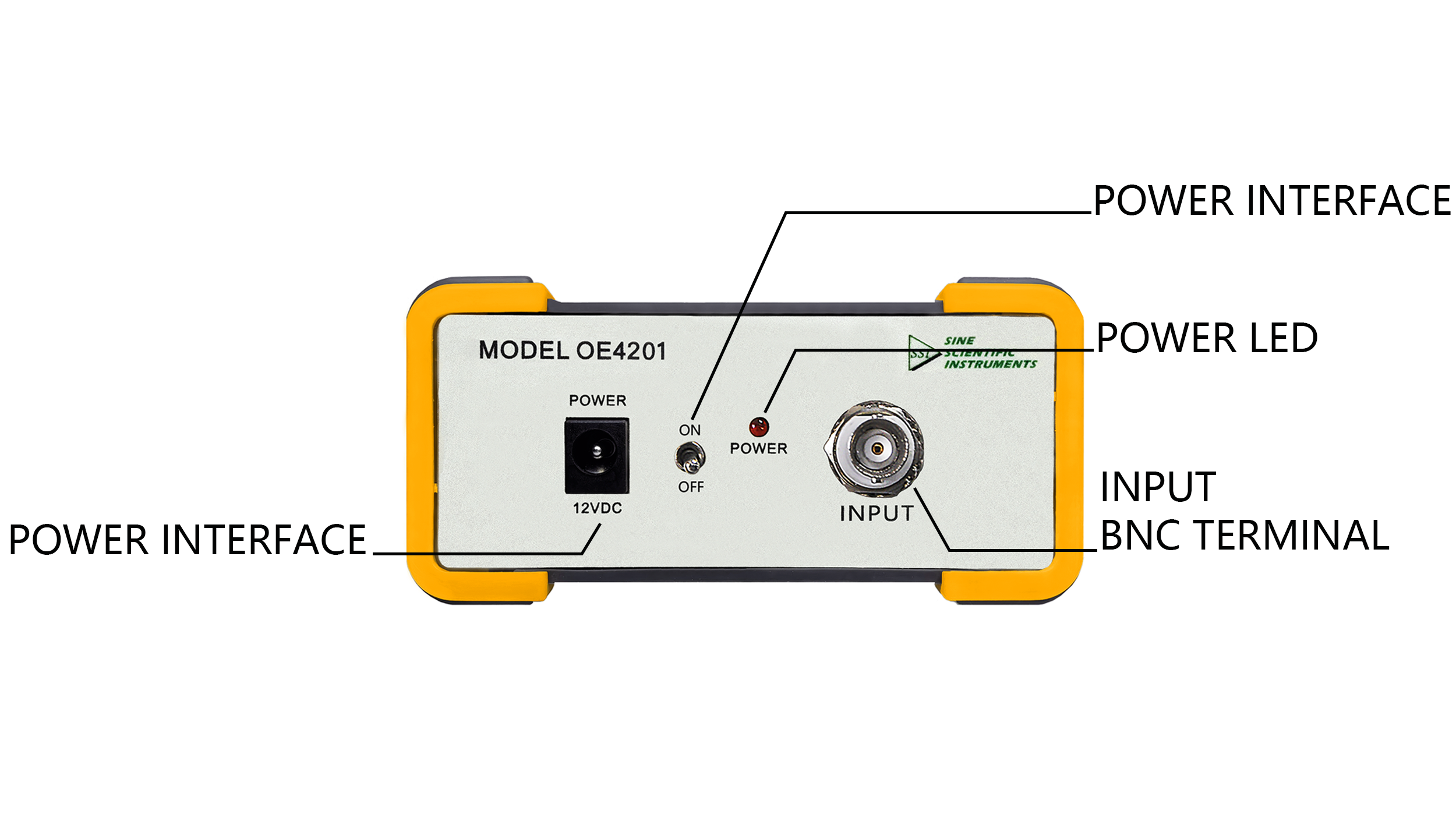

Input Panel

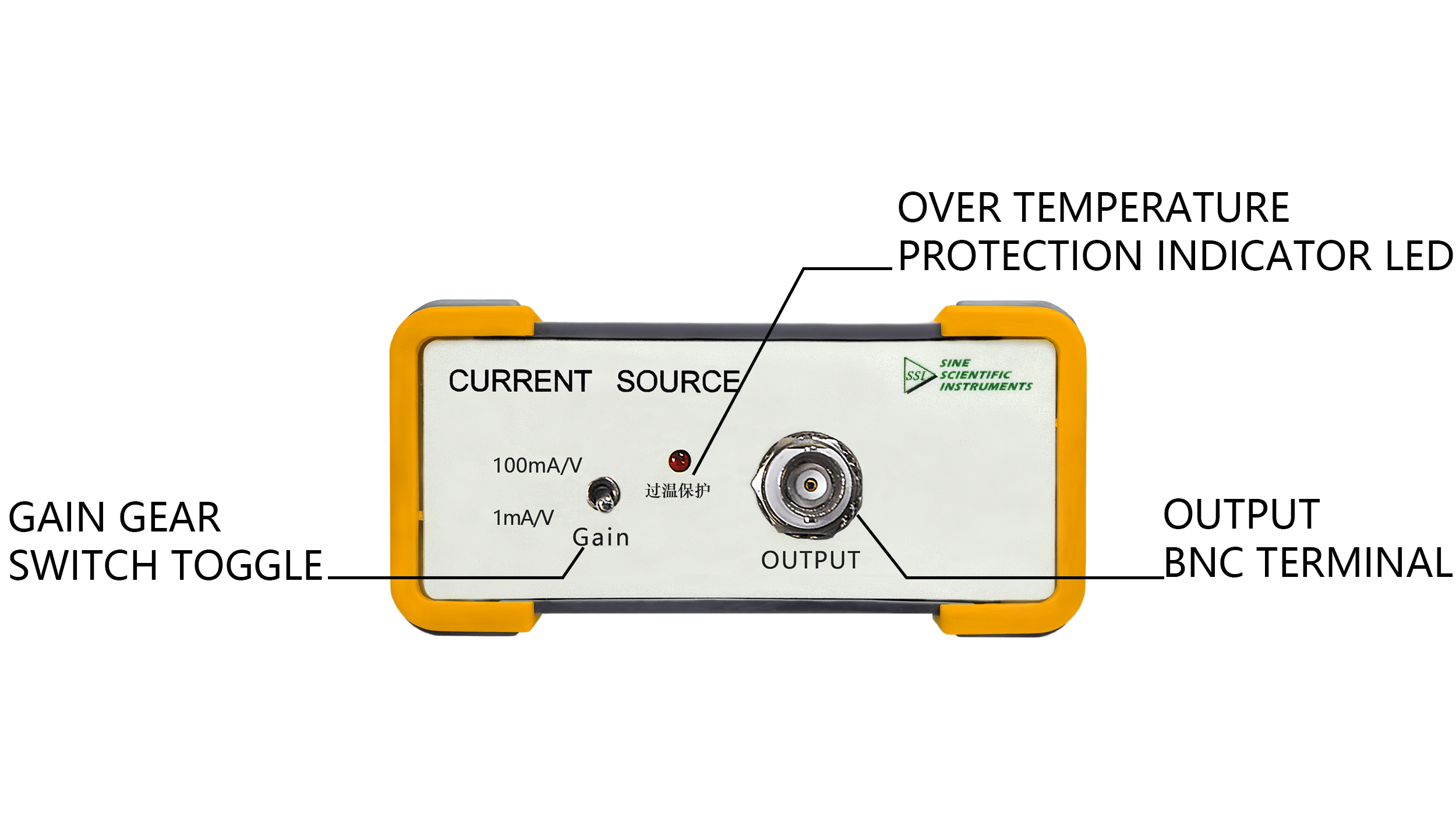

Output Panel
